GT-210 Biomass Hot Air Generator (190 kW)
24/7 assistance
100% customer satisfaction

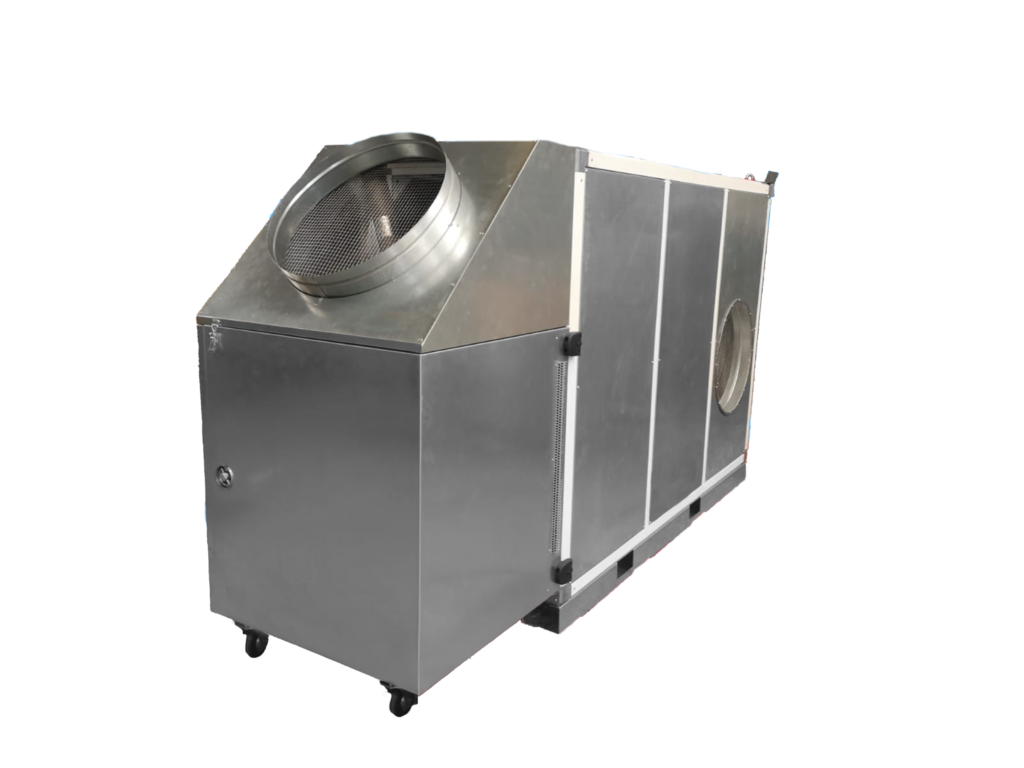

This generator was designed using all the technologies currently available in the field of biomass.
With a net power output of 190 kW, it delivers an airflow of 14,000m³/h.
It features a programmable, variable-speed multi-fuel burner with a self-cleaning combustion chamber (clinker and ash).
Maintenance access is very convenient from the front of the building.
The stainless steel (AISI 430) heat exchanger is equipped with a programmable cyclic vibration system, and the furnace is equipped with a screw conveyor for automatic ash removal.
The ash is collected in a tank equipped with a full-level alarm and a door-open switch.

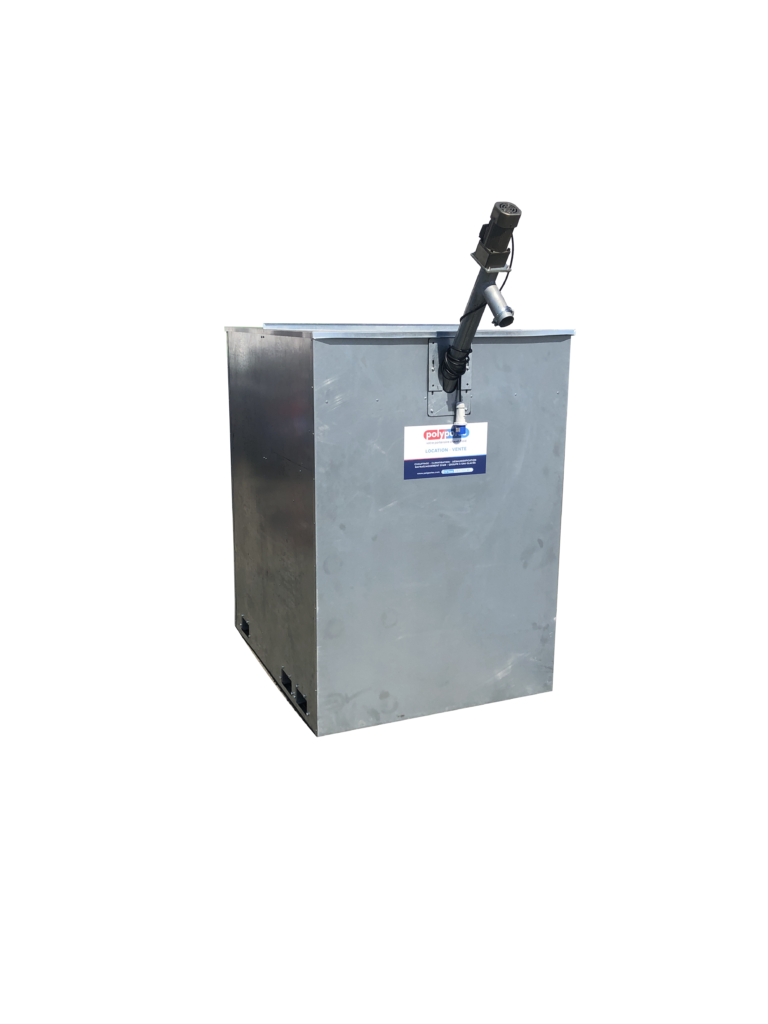

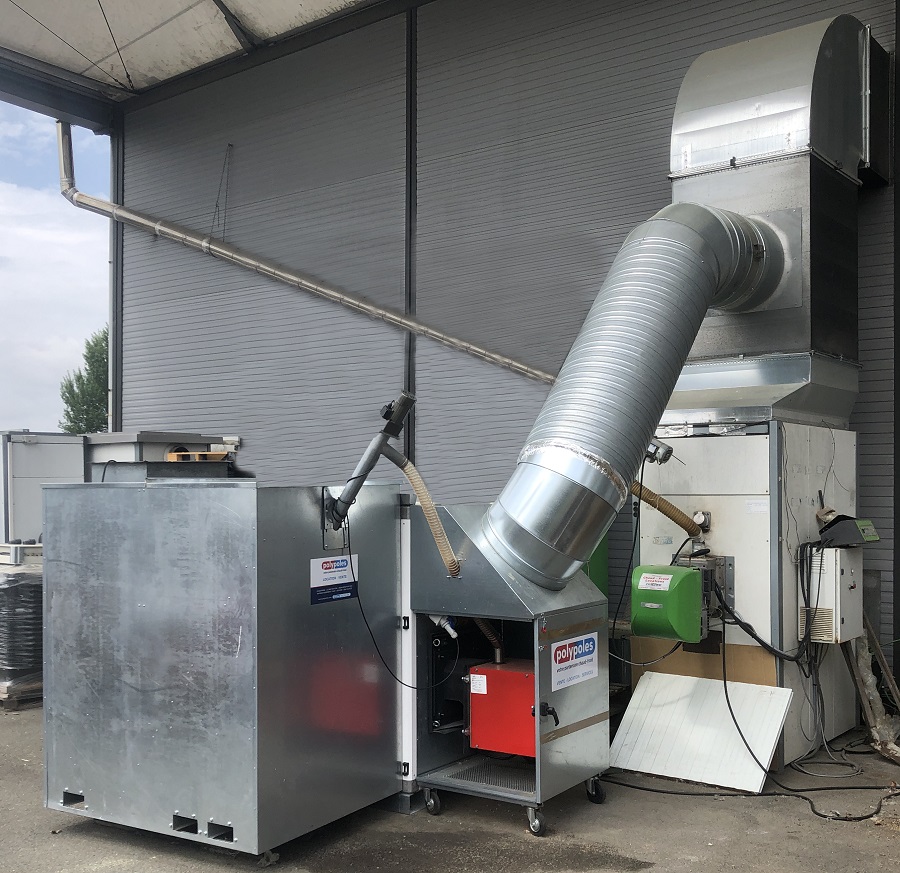

A2 m³ local silo (holding approximately 1,300 kg of material) can be positioned to the left or right of the machine; material is transferred via an auger.
Standard smoke extractor and control cabinet, complete with Wi-Fi connectivity.
25mm-thick compressed rock wool insulation panels, with an aluminum frame.
Features
– Stainless steel (AISI 430) heat exchanger and chamber – Medium-pressure centrifugal fan
– Configurable horizontal/vertical airflow
– Electrical panel integrated into the unit
– Removable burner access door
– Heat exchanger cleaning and automatic ash removal – Aluminum frame profiles
– 25 mm rock wool insulated sandwich panel
– Integrated smoke extractor
– Ash pan full alert
– Ash pan door open alert
– Safety thermostat alert
– 2 m³ pellet feed hopper
– Can be lifted with a forklift/crane and is stackable
– Optional: return via flue. Diameter 600 mm
